Reefer Units for Tank & Box Containers – Precision Temperature Control by Klinge
Ensure precise heating and cooling for temperature-sensitive cargo with Klinge reefer units for tank and box containers.
Designed for ISO tank containers and refrigerated box containers, these units deliver reliable temperature control for chemicals, pharmaceuticals, food products and beverages during transport and storage.
Introduction
Why Reefer Units Are Essential for Tank & Box Container Logistics
Many liquid and solid cargoes transported in tank and box containers require strict temperature control to maintain stability, safety and regulatory compliance. Exposure to temperature fluctuations can lead to crystallisation, degradation, spoilage, or safety risks—particularly for chemicals, pharmaceuticals and food-grade products. Dedicated reefer units provide controlled heating and cooling directly at the container level, ensuring cargo integrity across road, rail and sea transport, even in extreme ambient conditions. This container-centric approach reduces operational risk and protects high-value cargo throughout long intermodal journeys.
Key benefits:
- Maintains cargo temperature during long transit cycles
- Prevents solidification, spoilage, or chemical instability
- Supports regulated and high-value cargo transport
- Reduces cargo rejection and operational risk
Amfico × Klinge – Advanced Container Refrigeration Expertise
As part of its cold chain and liquid logistics ecosystem, AMFICO offers Klinge tank and box container refrigeration units, globally recognised for reliability and long service life. These systems are engineered for intermodal operations and supported by AMFICO’s technical expertise in deployment, operation and lifecycle support—ensuring dependable performance from installation to daily operations.
- Klinge refrigeration technology with decades of global use
- Suitable for tank containers and refrigerated box containers
- Supported by Amfico’s cold chain and logistics teams

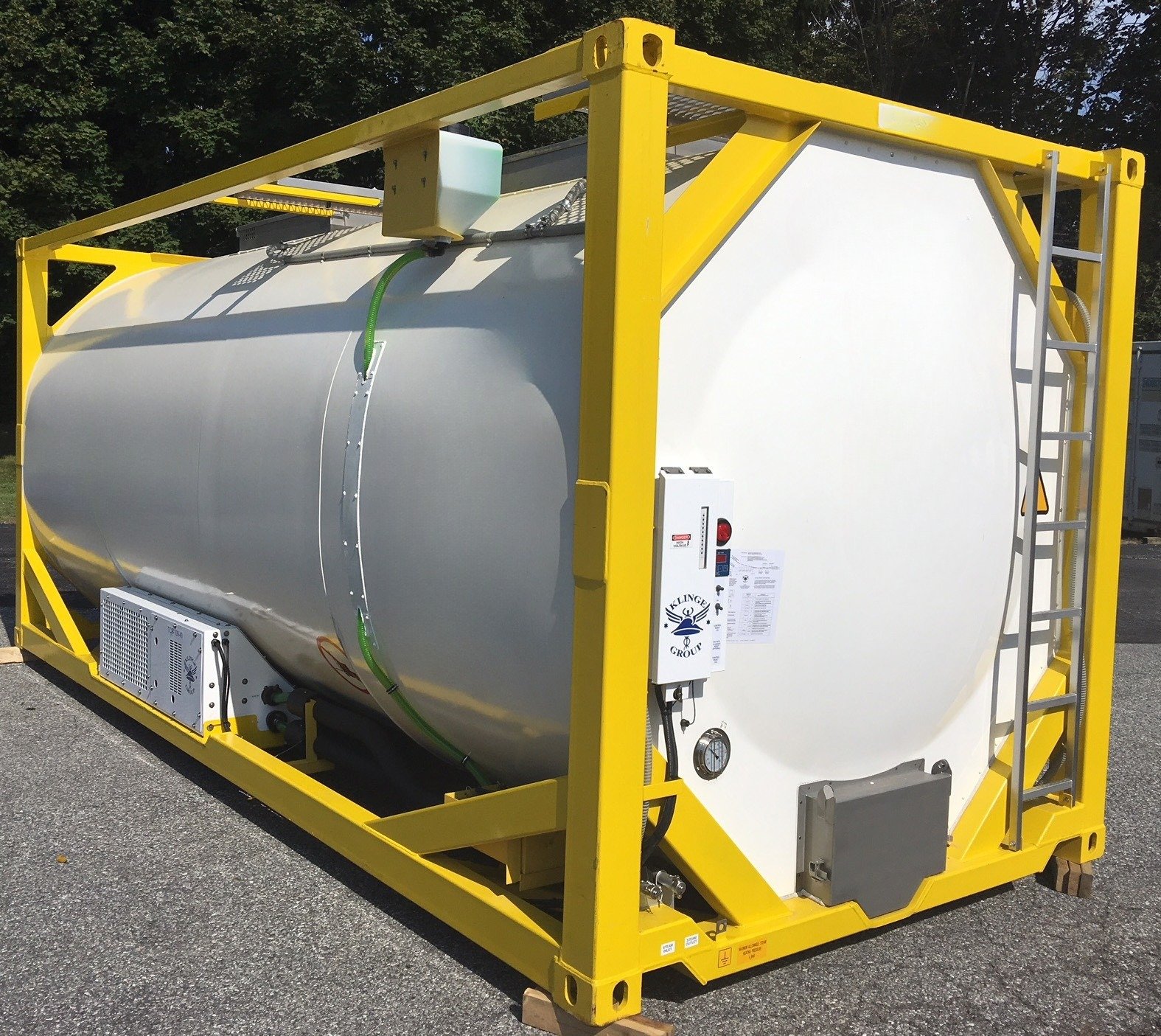

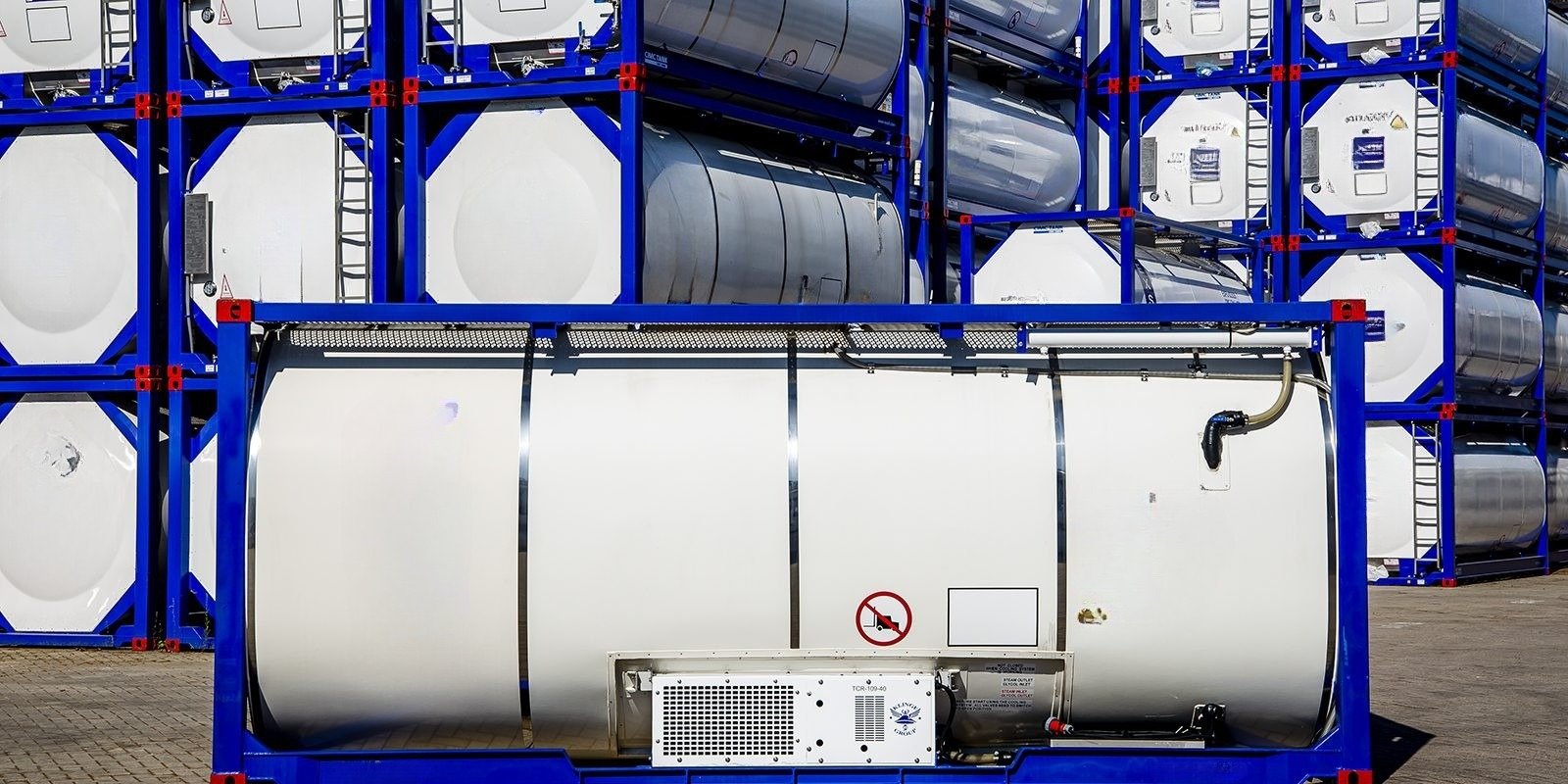

Klinge Tank Container Refrigeration Unit (Model TCR-109)
Integrated Heating & Cooling System
The TCR-109 circulates brine or synthetic oil around the tank shell, enabling both heating and cooling of tank cargo. Mechanical components are side-mounted, while the electrical control box is positioned for easy access—even when containers are stacked.
Wide Operating Temperature Range
- Maintains cargo temperatures from –20°F (–29°C) to +84°F (29°C) when equipped with a heater module
- Operates reliably in ambient temperatures from –22°F (–30°C) to +122°F (+50°C)
Compact, Service-Friendly Design
- Lightweight, compact configuration
- Easily mountable and demountable
- Easy-access chiller section reduces maintenance time
- Low maintenance intervals with robust components
Key Performance & Technical Features
- Copeland scroll compressor for high efficiency
- Microprocessor controller (MPC) for flexible, reliable operation
- Optional data logger for temperature monitoring
- Audible alarm horn and alarm notifications
- Optional redundancy configurations
- Options for GSM and satellite communication
- Designed for continuous operation in harsh environments
Reefer Applications – Tank & Box Containers
Typical use cases:
- ISO tank containers (chemicals, pharmaceuticals)
- Refrigerated box containers
- Food-grade liquids and beverages
- Specialty and temperature-sensitive chemicals
- Intermodal transport and terminal storage
Installation, Deployment & Support
Klinge reefer units supplied by AMFICO are engineered for practical, real-world operations.
- Easily mountable on tank or box containers
- Accessible during terminal or vessel stacking
- Pre-delivery inspection and configuration support
- Operational guidance and ongoing technical assistance
Why Choose AMFICO for Klinge Reefer Units
Proven Cold Chain Expertise
Experience in temperature-controlled logistics for liquid and containerised cargo.
Globally Trusted Klinge Technology
Reefer units with decades of proven field performance.
Integrated Support Ecosystem
Reefer solutions combined with tank containers, heating systems, maintenance and logistics services.
Download Klinge Tank & Box Container Reefer Unit Technical Overview
Includes:
- Operating temperature ranges
- System components and available options
- Monitoring and alarm features
- Installation and maintenance guidance
Reliable Temperature Control for Critical Cargo
From tank containers to refrigerated box containers, AMFICO delivers Klinge reefer units that ensure temperature stability, operational reliability and compliance across the cold chain protecting your cargo from origin to destination.
